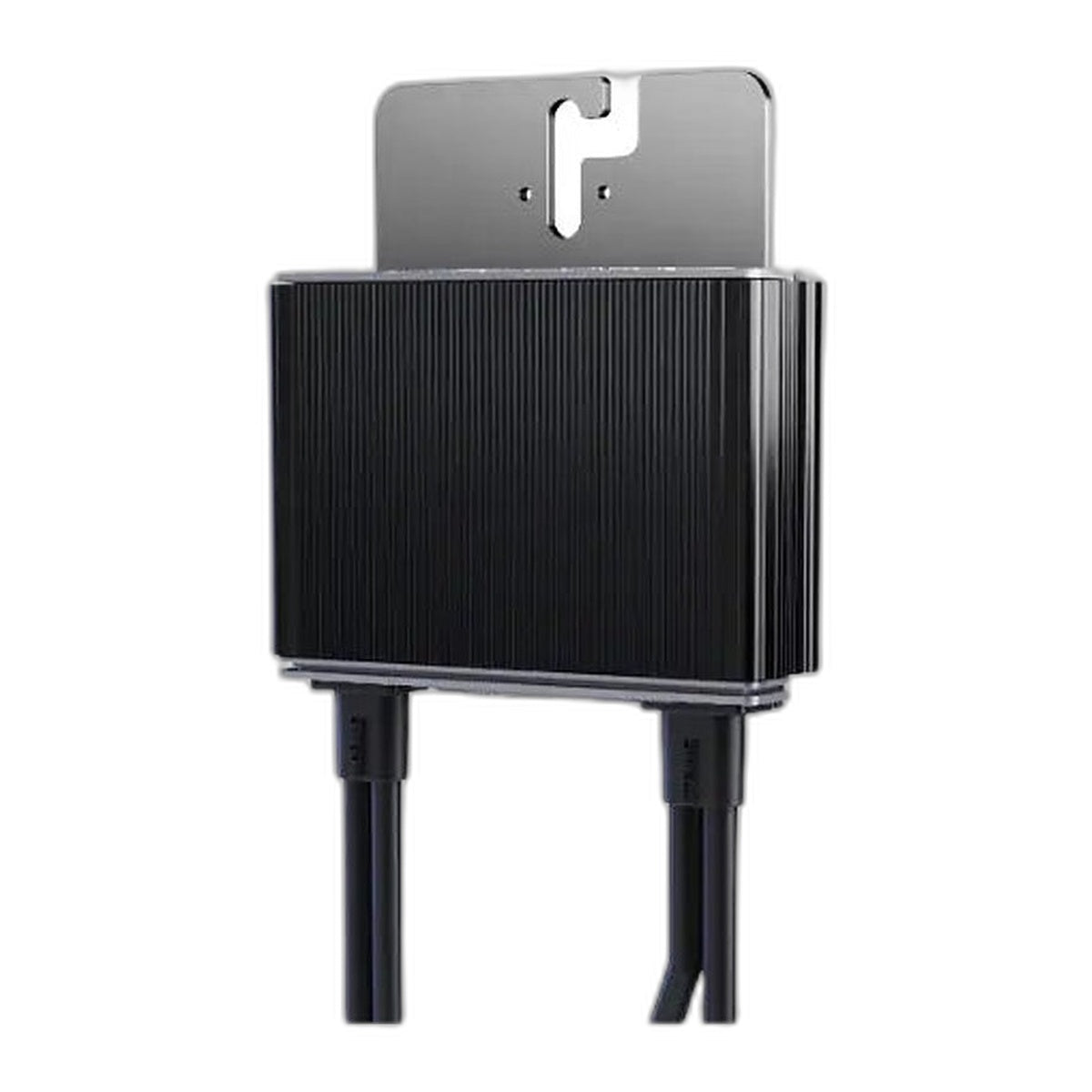

The SolarEdge S500B is the high-wattage power optimizer, designed for the latest generation of 440–500W residential panels. The B-suffix model includes an integrated MC4 connector bracket for faster installation on panels with standard MC4 junction boxes.
Specifications
| Model | S500B |
| Max DC Input Power | 500W |
| Max Input Voltage | 80V |
| Max Output Current | 15A |
| Compatible Panels | Up to 500W (72-cell, 144 half-cell) |
| Rapid Shutdown | NEC 2017/2020 compliant |
| Warranty | 25 years |
Key Features
- 500W input handles current and next-generation high-wattage residential panels
- Integrated MC4 bracket (B model) simplifies panel-to-optimizer wiring
- Per-panel MPPT and NEC 2017/2020 rapid shutdown combined
- Panel-level monitoring via SolarEdge platform
- 25-year warranty
Compatible With
SolarEdge HomeWave and StorEdge inverters. Best matched with 440–500W residential modules. Requires SolarEdge inverter — not cross-brand compatible.
